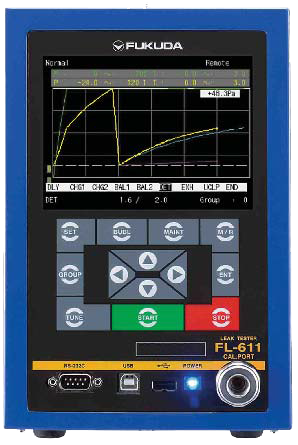

FL-611 Leak Tester

Multipurpose Air Leak Tester

The FL-611 is a general purpose air leak tester that can handle a variety of works and measuring conditions.

Measurement Permits without Master Work

Provides a corrective function for OK/NG judgment referred to evaluation data that was created without a master.

High Accuracy and Short Measurement Time

Detection accuracy is enhanced by comparing master (reference) data structured with measured data, so that leaks can be detected in a short period of time.

High-pressure measurement (up to 5MPa)

Equipped with USB Ports

Easy Processing of I/O data, update software. Measurement results data can be save USB-memory and handling of the data.

A Variety of Parts Covered

32 different types of measurements conditions are configurable

Large-sized Graphic color Display

Processes of on-going measurements, wave forms, and data analysis can be displayed on the screen.

Flow & Leak Testers

Hydrogen Leak Tester

World's first ! (Decompression chamber method)

• Realized expansion of measurement range and improvement
• Precision by Fukuda's original measurement method
• Reduces Equipment Cost and Running Cost
• Offers Improvement of Measurement Environment

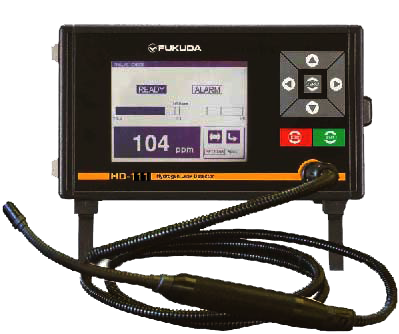

Hydrogen Leak Tester

Tracer gas method containing 5% hydrogen and 95 % nitrogen.

• Using mixed gas containing 5% hydrogen and 95% nitrogen as a tracer gas.
• Non flammable safe gas approved by ISO10156:1990.
• Clean gas that does not contaminate the environment.
• Easy to obtain as a general industrial gas.
• The most suitable for conducting the leak test with excellent diffusion properties.

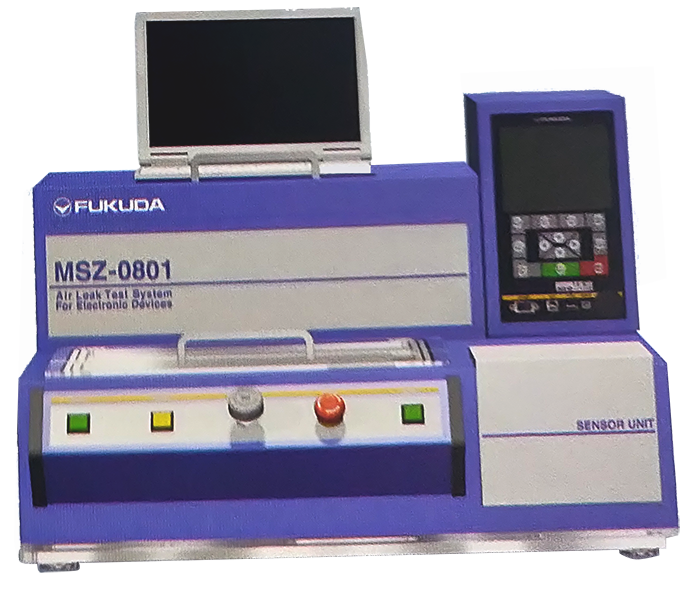

Multipurpose Air Leak Tester

An air leak test system to confirm the sealing and waterproof performance of electronic devices such as smarphones, tablets, keyless switches and digital cameras.

• Leak tests equivalent to IPX7 and IPX8 (waterproof standards) are possible
• The high accuracy and efficiency the waterproof test by the air leak test
• Line-Up corresponding to the work size

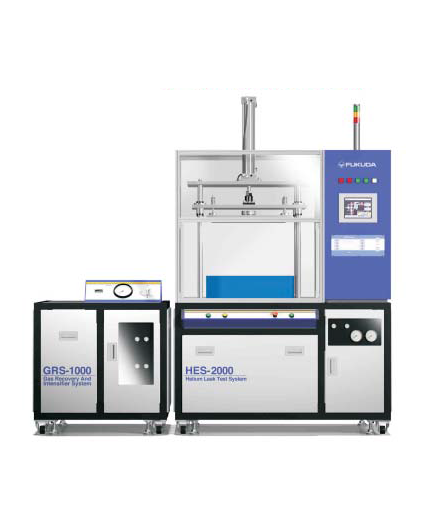

Helium Leak Tester

Helium Leak Advantages

• The amount Helium that is included in the air is extremely small at 5 ppm
• Helium Molecule diameter is small so easily passes through microscopic holes
• Chemically inert so exhaust systems and devices under test are not contaminated
• Harmless to the human body and safe because it is not Flammable
• There are no environmental pollution problems

Eletric Pneumatic Regulator

• Feedback from external sensors instantly regulates pressure flow.
• Capable of controlling pressure flow rate through voltage or electric current in succession.
• Response time of 1 sec -2 sec (Excluding APU models 130 and above)
• Various models available to control small to large flow volumes.
• Various models available for a variety of pressure applications.
